Description
Key Features
Standardized parts

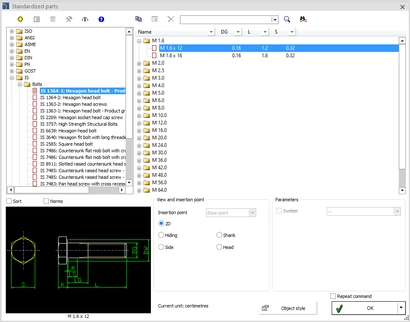

A rich set of parametric standardized parts and fasteners prepared on the basis of national and international standards (e.g. ISO, ANSI, ASME, EN, DIN, PN, IS, JIS, GOST), including bolts, screws, washers, nuts, joints, rivets, studs, openings, rebates, wedges, pivots, pins, bearings, grease nipples, rings and many more.
Heat exchangers

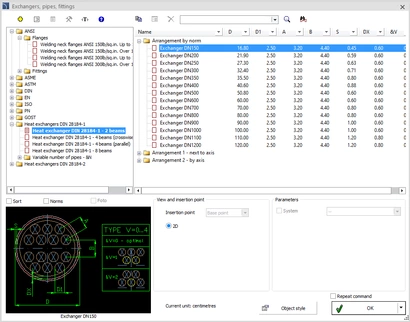

Procedures used for calculating the heat exchangers and different types of tube bundles in heat exchangers.
Marks

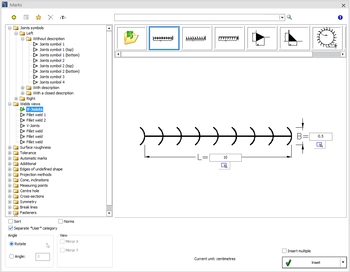

System of freely configurable marking welds, tolerance signs, edge, roughness and others. Inserting weld views (V welds, fillet welds) with the possibility of defining user own dimensions.
Shapes and profiles

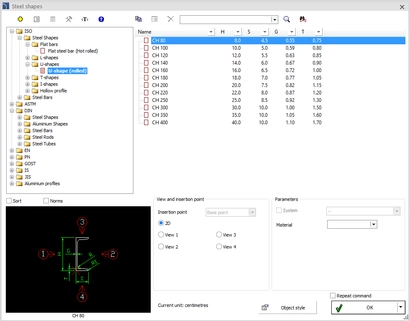

Steel and aluminium shapes and profiles: L-shapes, C-shapes, T-shapes, flat bars, hollow profiles, rods, pipes and others. In profiles, it is possible to specify the material type (type of steel).
Dynamic scaling

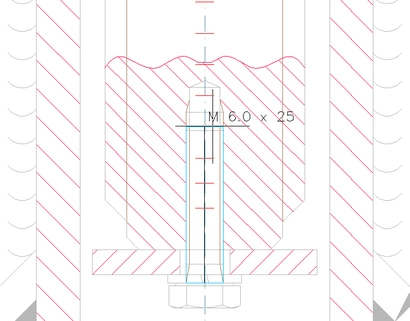

Dynamic scaling of parts when inserting them into drawing or when editing projects. This allows for automatic selection of the size of the element directly in the drawing (e.g. selecting screws with a length matched to the thickness of connected elements).
Pneumatic systems

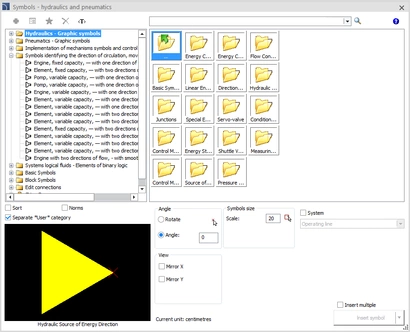

Convenient design of diagrams and pneumatic systems using smart symbols, lines and editing functions.
Designing apparatus

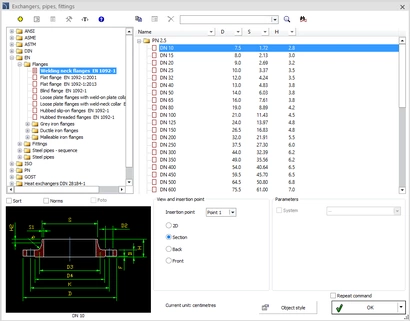

Elements used for designing apparatus, including flanges and dished ends, steel pipes and fittings (elbows, tees, reducers). It is possible to draw pipelines with automatic insertion of bends and automatic connection of pipes by using a variety of fittings.
Different views

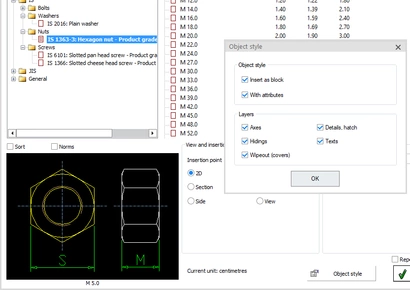

All parts have different views adapted for creating different designs (e.g. front views, side, cross-section etc.). It is also possible to define the style and detail level that allows for insertion of parts with details, axes, hatch etc.
Drawing tools

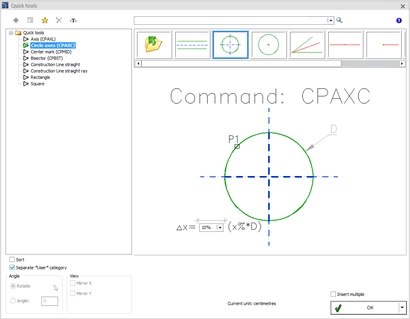

Additional drawing tools that greatly facilitate the creation of technical drawings (axis, circle axes, center marks, bisectors and others). Function of detecting all circles in the selected block and automatic insertion of circle axes or center marks in them.
